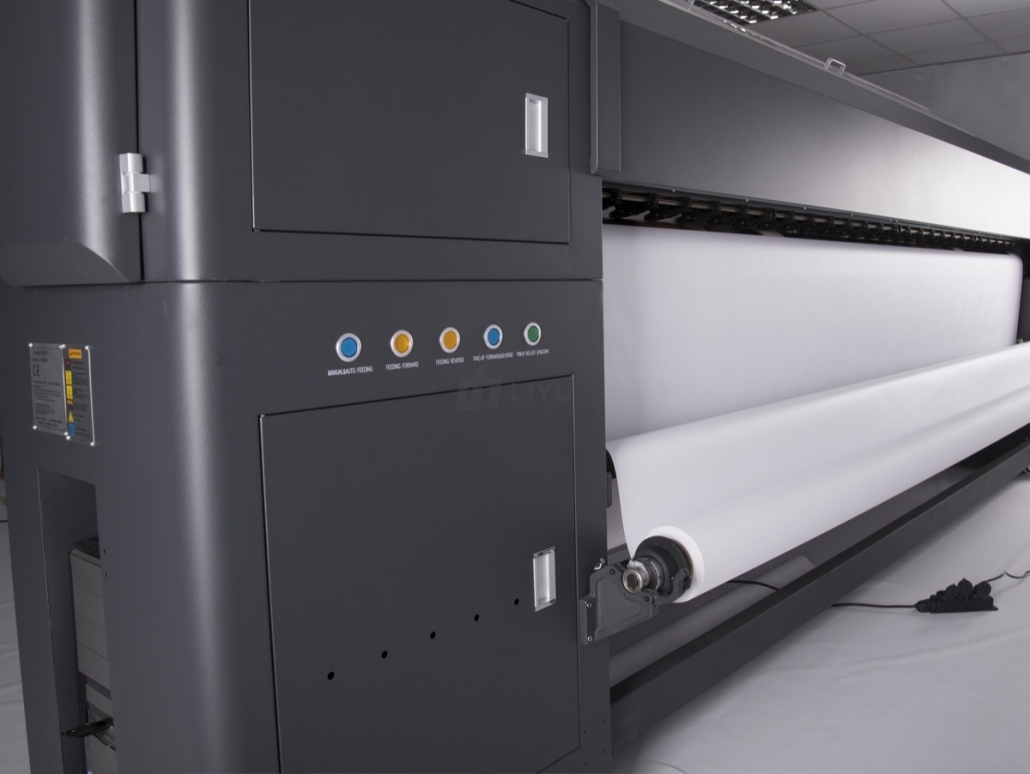

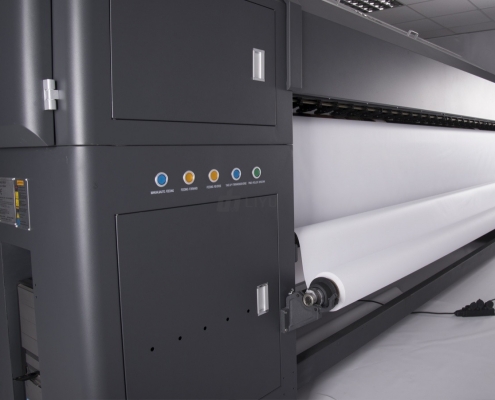

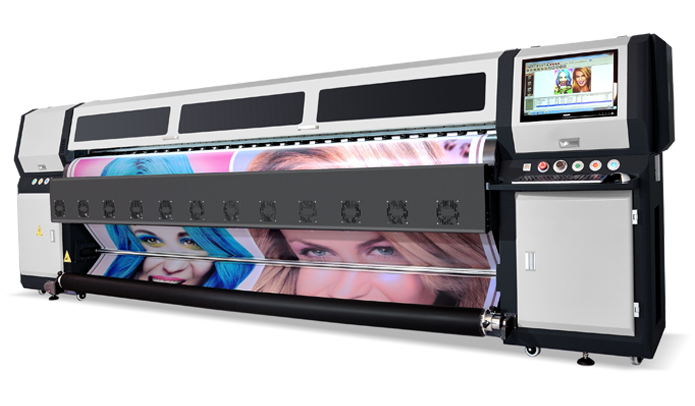

Platinum PZR

General Information & Highlights

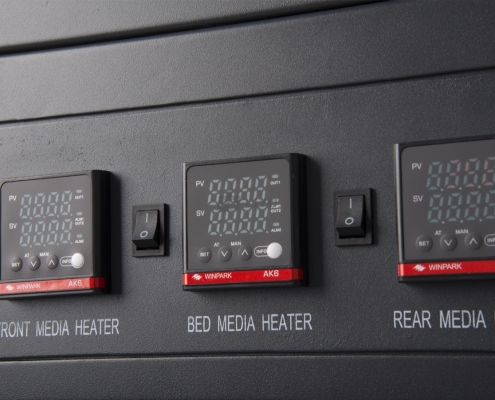

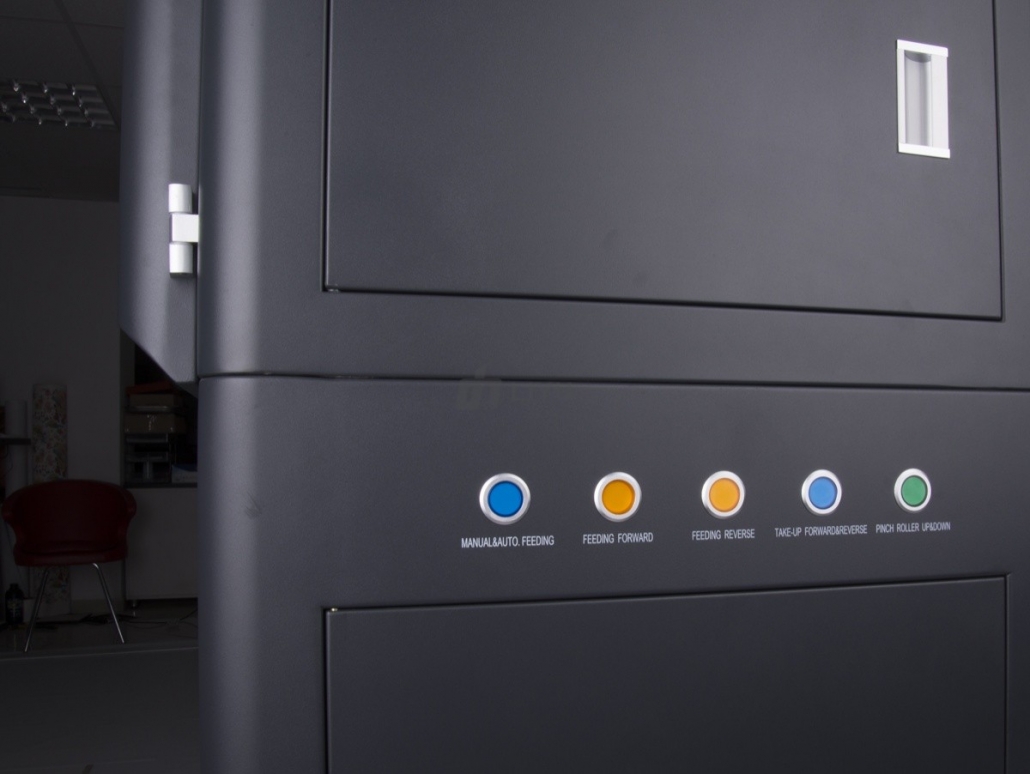

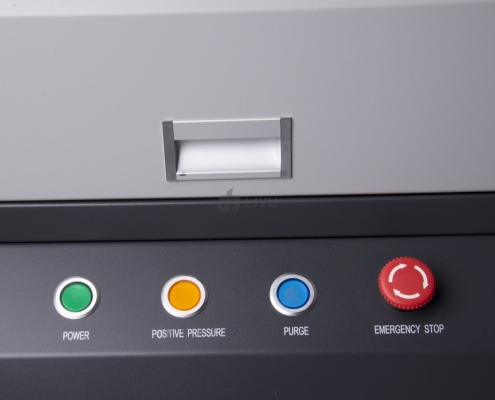

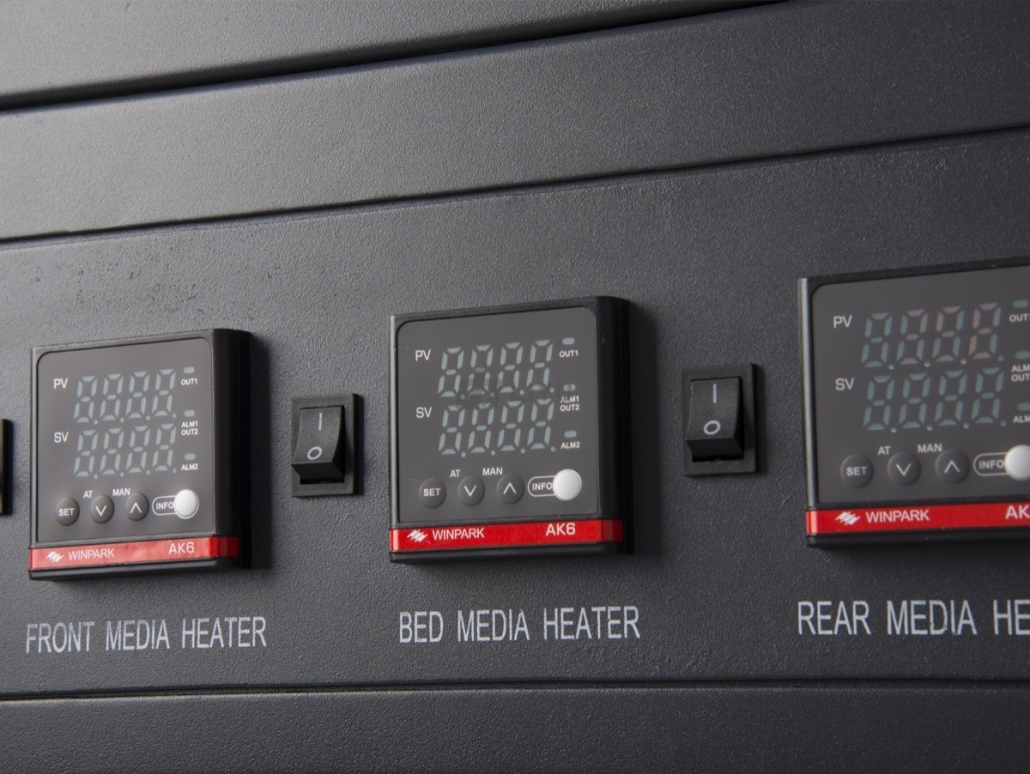

2880 dpi printing quality, automatic media measuring system , LCD control panel, adjustable local halogen heaters, LED lighted printing area, automatic pinch roller control.

Specifications

Color Scale	CMYK
Drop Volume	13 Pl. – 14 Pl – 30 Pl.
Drying System	Infrared – Heater – Fan
Ink Types	Solvent / EcoSolvent
Machine Size	950 mm x 4800 mm x 1520 mm
Machine Weight	750 kg.
Power Requirements	230v (+/-) 10% / 22A / 50HZ
Print Heads	KM 1024i – KM 1024 – Km 512i
Print Resolution	2880 DPI – 1440 DPI
Print Speed Up to	110 m2 / h – 210 m2 / h
Print Width	3200 mm
Printhead Quantity	4 – 8
RIP Software	PhotoPrint
