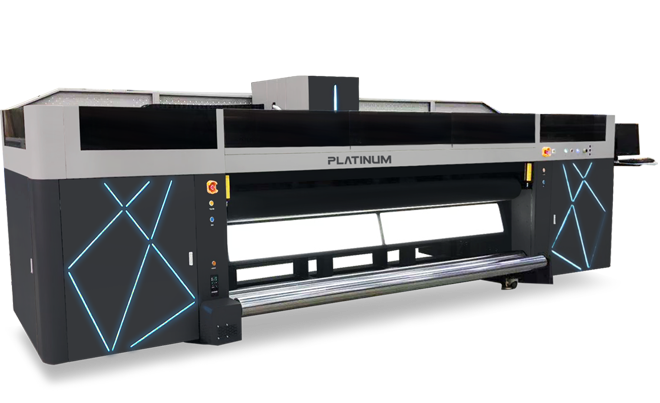

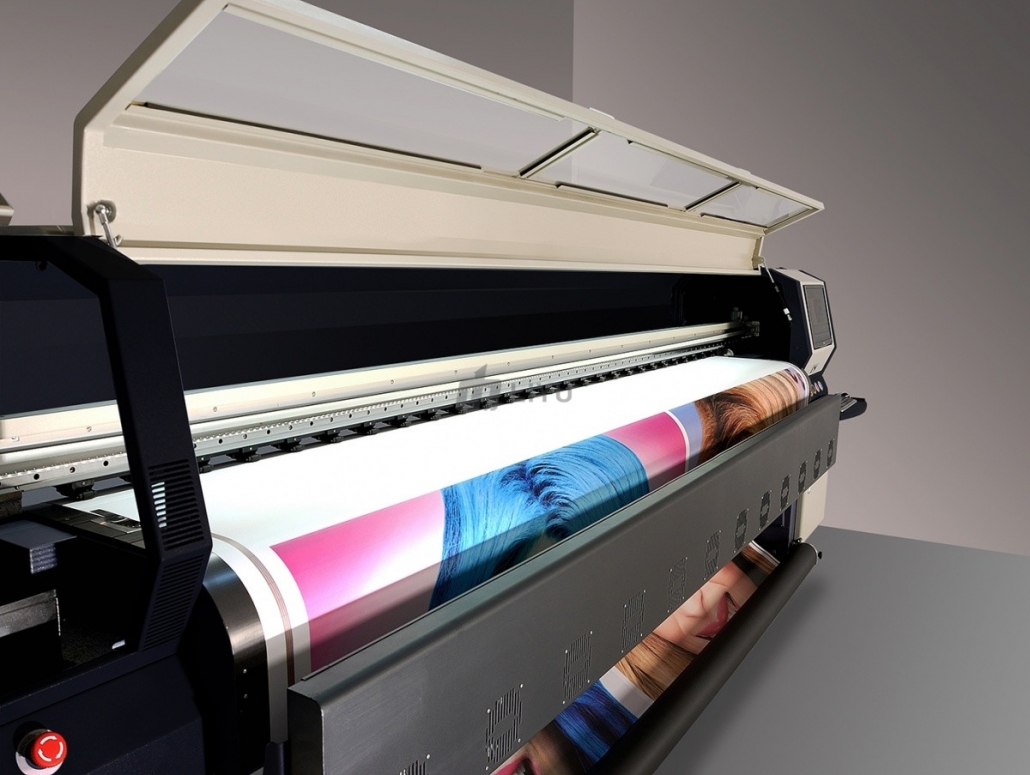

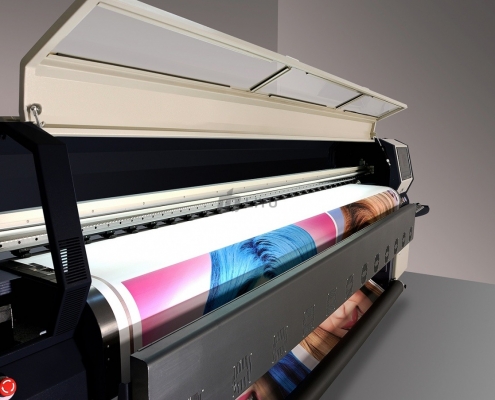

General Information & Highlights
High quality prints on PVC, Vinyl, Blacklit Film, Photo Paper, Flex, Textile ( Roller blind…etc) with 2880 dpi resolution…
Specifications
Color Scale | CMYK + Lc + Lm + W + V |
Drop Volume | 3 Pl. – 6 Pl – 13 Pl |
Drying System | UV Curing – LED Curing |
Ink Types | LED |
Machine Size | 6412 mm x 1650 mm x 2100 mm |
Machine Weight | 2800 kg. |
Power Requirements | 230v (+/-) 10% / 32A / 50HZx2 |
Print Heads | KM 1024 – KM 1024i |
Print Resolution | 2880 DPI |
Print Speed Up to | 150 m2 / h |
Print Width | 3300 mm |
Printhead Quantity | 16 (Max.) – 6 (Max.) |
RIP Software | PhotoPrint – Caldera (Opt.) |
Print Media
- Advertising Media
- Banner
- Canvas
- Curtain
- Fabric
- Leather
- One Vay Vision
- Vinylex
