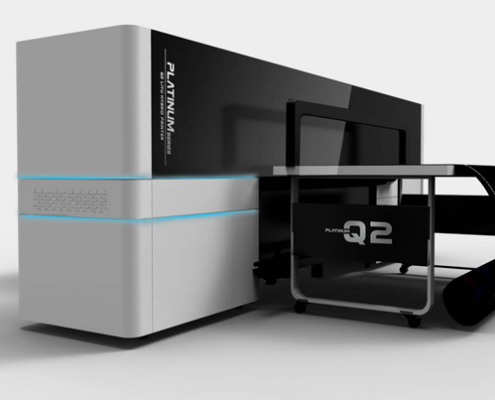

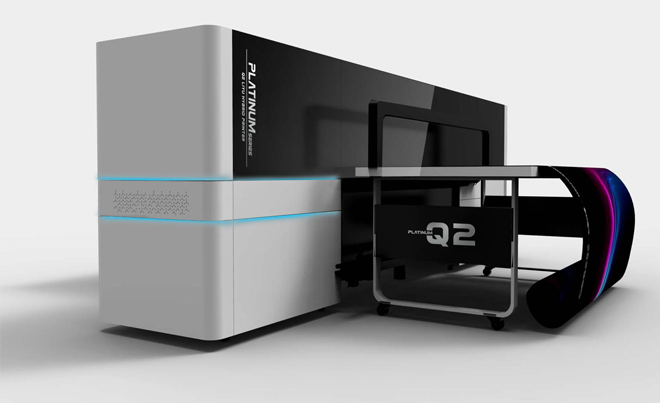

Platinum Q2 hybrid
General Information & Highlights
High quality prints on PVC, Vinyl, Blacklit Film, Photo Paper, Flex, Textile ( Roller blind…etc) with 2880 dpi resolution…
Specifications
| Color Scale | CMYK + Lc + Lm + W |
| Drop Volume | 6 Pl. – 13 Pl – 7 Pl – 3 Pl |
| Drying System | UV Curing – LED Curing |
| Ink Types | UV – LED |
| Machine Size | 3200 mm x 5000 mm x 1850 mm |
| Machine Weight | 2400 kg. |
| Power Requirements | 230v (+/-) 10% / 40A / 50HZ/ 60HZ/ |
| Print Heads | KM 1024i – Ricoh Gen5 – Kyocera |
| Print Resolution | 2880 DPI – 1200 DPI – 2400 DPI |
| Print Speed Up to | 90 m2 / h |
| Print Width | 2050 mm |
| Printhead Quantity | 16 (Max.) – 8 (Max.) – 6 (Max.) |
| RIP Software | PhotoPrint – Caldera (Opt.) |
Print Media
- Advertising Media
- Banner
- Canvas
- Curtain
- Fabric
- Leather
- One Vay Vision
- Vinylex
