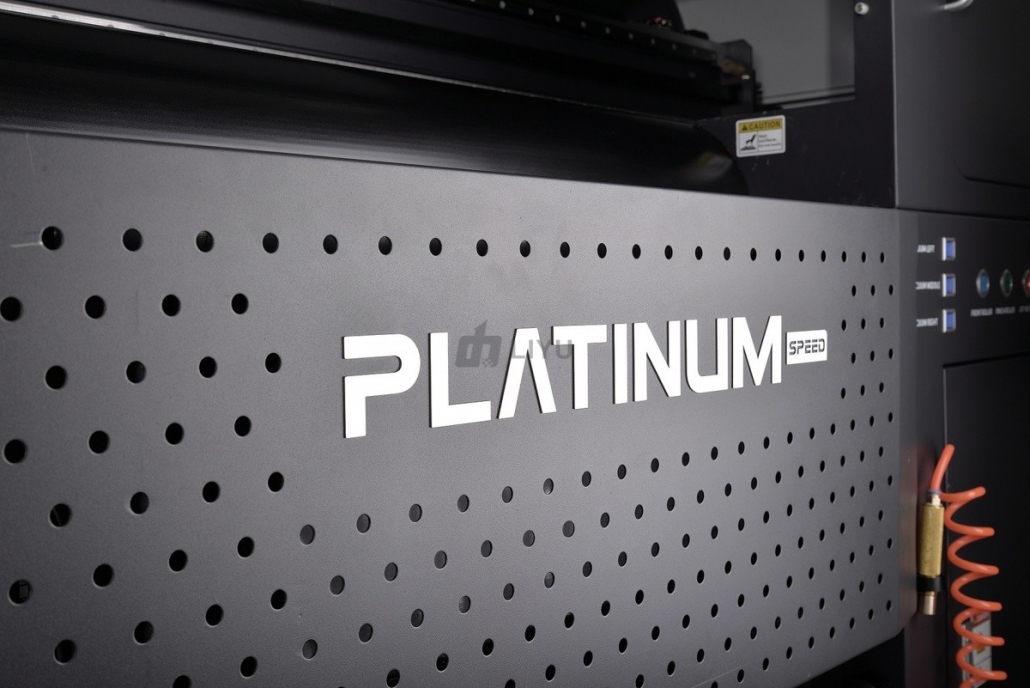

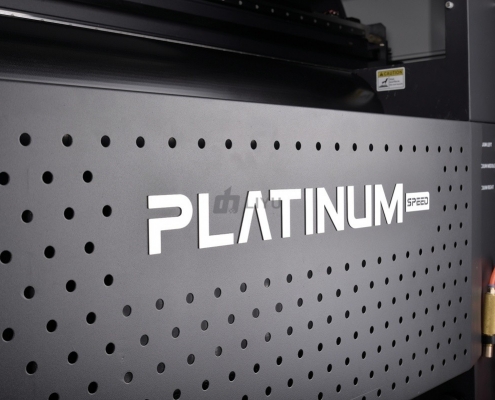

Platinum PCT TEX
General Information & Highlights

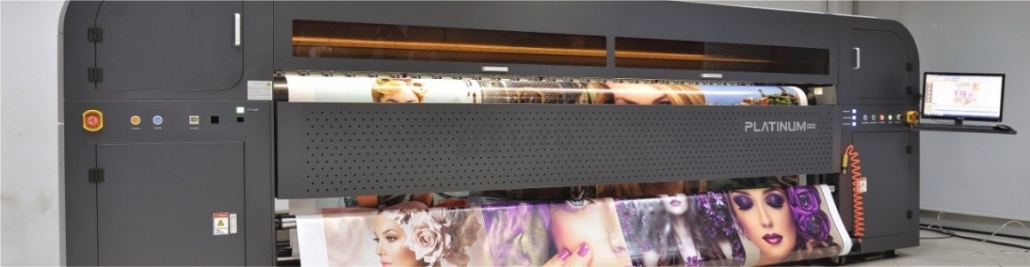

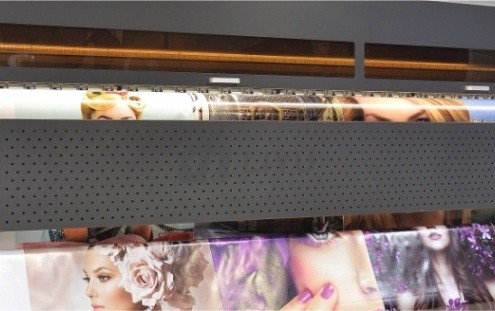

Textile Printer, with is impressive modern outern design, print width of 320 cm, print speed up to 80 m2/h, 2880 dpi resolution and 13 pl droplet volume, makes it possible to produce much faster and with more quality.
Specifications
| Color Scale | CMYK + Lc + Lm |
| Drop Volume | 13 Pl. |
| Drying System | Halogen Heather – Fan |
| Ink Types | Sublimation / Reactive / Pigment |
| Machine Size | 1150 mm x 5400 mm x 1650 mm |
| Machine Size Fixation Unit | 1100 mm x 5200 mm x 2000 mm |
| Machine Weight | 2000 kg. |
| Power Requirements | 230v (+/-) 10% / 32A / 50HZ |

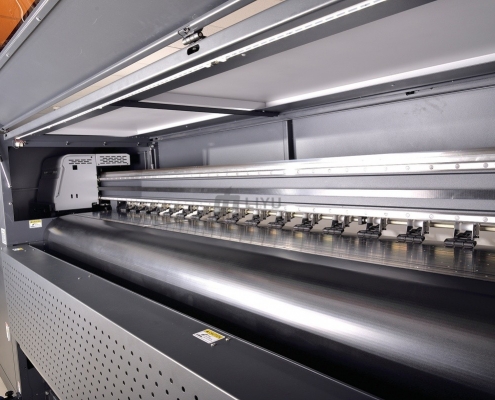

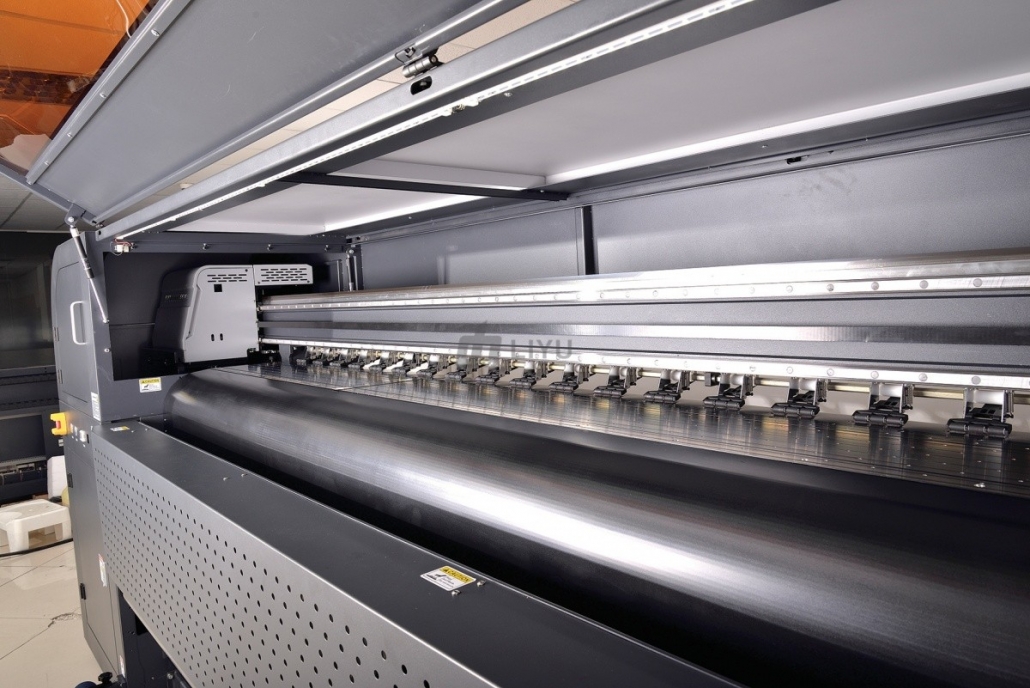

| Print Heads | KM 1024i |
| Print Resolution | 2880 DPI |
| Print Speed Up to | 150 m2 / h |
| Print Width | 3200 mm |
| Printhead Quantity | 4 – 6 – 8 – 12 |
| RIP Software | PhotoPrint – Ergosoft (Opt.) |
| Standart | Fixation Unit 3200 mm |
Print Media
- Curtain
- Fabric
- Raschel fabric
- Satin fabric
- Seat Fabric
- Stor Curtain
